Features
Designed to work between the rows and withing the crops with maximum accuracy and without damaging crops, Bioguard is an in-row and inter-row cultivator with rigid frame or hydraulically foldable and high-strength steel structure, designed to ensure stability and consistent performance even in demanding conditions.
The reduced mechanical play and robust construction allow precise cultivation, while each in-row element is controlled by an artificial intelligence camera, which automatically guides the rear hoes in removing weeds between plants.
Technical
components

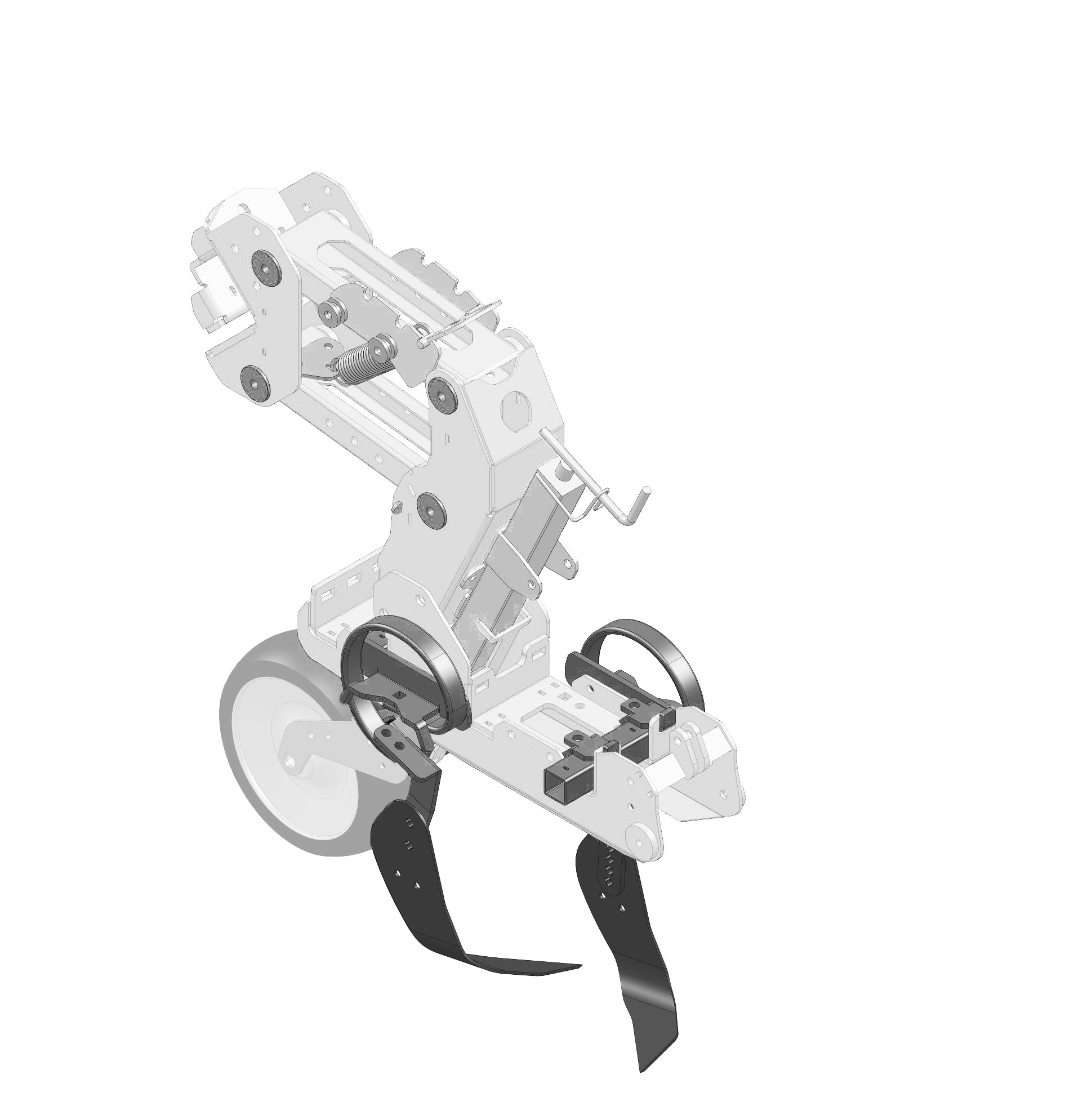

BASE ELEMENT
The cultivating element has been designed with reduced mechanical clearances, lightness and high rigidity to achieve maximum precision in the field.
Through the use of high-strength materials we have reduced weight and maintained robustness.
Each element is highly customizable to meet every requirement.
It is equipped with 300 mm diameter depth adjustment wheels, mounted on ball bearings with a handwheel adjuster.
SPRINGS WITH DEPTH ADJUSTMENT
They can be mounted in place of spring supports and offer the possibility to adjust the height of the hoes.
AI CAMERA
The cameras are equipped with a lens for identifying crops among weeds, allowing their safe removal. Four LED illuminators ensure the best possible exposure of plants for image processing through the onboard computer, even during nighttime operations. The cameras also allow alignment of the implement to plants by acting directly on the automatic side shifter (Tracker).
QUICK HOE ADJUSTMENT
Quick adjustment system for hoe width. It can be easily mounted in place of spring carrier tubes to quickly adjust the width of hoes or inter-row wheels.
In just seconds you can adjust the distance from plants without using tools.
ANTI-CLOGGING HOES ON SPRING
As standard, the machine is supplied with special anti-clogging hoes mounted on springs. These hoes cut the soil without moving clods, to achieve precision cultivation on surface layers.
Weeds are cut, the soil is not moved deeply and clods are not brought to the surface.
The springs are mounted on dedicated attachments that prevent lateral movement, to have the advantages of the spring with the precision of a rigid support.
INTEGRATED TRACKER
Precision guidance system applied between tractor and implement that allows automatic guidance of the machine between crop rows. Lateral translation is controlled by AI cameras.
Go to product
Customization and Support
Each unit can be completely customized according to the farmer’s needs, making Bioguard a versatile, reliable machine ready to handle even the most delicate cultivation contexts. Our technical team accompanies the customer in the selection and provides rapid support for maintenance, spare parts and future adaptations.
